What are the disadvantages of a capacitive level meter?

As a supplier of Capacitive Level Meters, I've had extensive experience with these devices. While capacitive level meters are widely used and offer numerous advantages, it's essential to also understand their disadvantages. This knowledge can help potential customers make more informed decisions when choosing a level measurement solution.

1. Sensitivity to Material Properties

Capacitive level meters operate based on the principle of capacitance change, which is highly dependent on the dielectric constant of the material being measured. Different materials have different dielectric constants, and some substances may have dielectric constants that are very similar to each other or change under certain conditions. For instance, if you are trying to measure the level of a liquid in a storage tank and there are small impurities or dissolved substances in the liquid, the dielectric constant of the liquid can change. This change can lead to inaccurate level readings.

Even a minor variation in the composition of the material can cause significant errors in the measurement. Consider a scenario where a chemical process involves a mixture of solvents, and the ratio of the solvents changes slightly over time. A capacitive level meter may not be able to accurately track the level because the dielectric constant of the mixture is altering. This sensitivity to material properties can be a major drawback, especially in industries where precise measurement is crucial, such as in the pharmaceutical or food and beverage industries.

2. Temperature and Humidity Effects

The performance of capacitive level meters can be significantly affected by temperature and humidity variations. Changes in temperature can cause the dielectric constant of the measured material to change, as well as affect the physical properties of the sensor itself. For example, the expansion or contraction of the sensor materials due to temperature changes can lead to mechanical stress, which may alter the capacitance and thus result in inaccurate level measurements.

Humidity can also have a detrimental effect on capacitive level meters. Moisture in the air can condense on the sensor surface, creating a conductive path that can interfere with the capacitive measurement. This is particularly problematic in environments with high humidity or in applications where the sensor is exposed to steam or water vapor. In some industrial settings, such as paper mills or breweries, the high humidity levels can make it challenging to obtain reliable readings from capacitive level meters.

3. Installation and Calibration Complexity

Installing a capacitive level meter can be a complex process. The sensor needs to be properly positioned within the container to ensure accurate measurement. Factors such as the shape of the container, the presence of internal structures, and the flow pattern of the material can all affect the installation. For example, if the sensor is not installed at the correct angle or in the right location, it may not be able to detect the level accurately.

Calibration is another critical aspect that requires careful attention. Capacitive level meters need to be calibrated for each specific application and the material being measured. This calibration process can be time - consuming and requires expertise. Incorrect calibration can lead to significant measurement errors. Moreover, if the material properties or the operating conditions change over time, the level meter may need to be recalibrated, adding to the maintenance complexity and cost.

4. Interference from External Sources

Capacitive level meters are susceptible to interference from external electrical and magnetic fields. In industrial environments, there are often many electrical devices and machinery that generate electromagnetic fields. These fields can couple with the capacitive sensor and cause false readings. For example, large motors, transformers, or radio frequency sources can all interfere with the operation of the capacitive level meter.

In addition to electromagnetic interference, mechanical vibrations can also affect the performance of the level meter. Vibrations can cause the sensor to move slightly, which can change the capacitance and lead to inaccurate measurements. In applications where there is a lot of machinery movement or where the container is subject to vibrations, such as in a ship's fuel tank or a vibrating conveyor system, the reliability of capacitive level meters may be compromised.

5. Limited Compatibility with Certain Materials

Capacitive level meters may not be suitable for all types of materials. Some materials, such as highly conductive liquids or materials with very low dielectric constants, can pose challenges for these level meters. Highly conductive liquids can cause the capacitance to be dominated by the conductivity rather than the level of the liquid, making it difficult to obtain accurate level readings.

Materials with very low dielectric constants may not produce a significant enough change in capacitance to be reliably detected by the level meter. For example, in some applications where measuring the level of a gas or a very light - density powder is required, a capacitive level meter may not be the best choice.

6. Cost Considerations

Capacitive level meters can be relatively expensive compared to some other types of level measurement devices. The cost includes not only the purchase price of the device but also the installation and calibration costs. Additionally, as mentioned earlier, the need for recalibration and maintenance over time can add to the overall cost of ownership.

In applications where cost is a major factor, such as in some small - scale industrial operations or in budget - constrained projects, the higher cost of capacitive level meters may be a deterrent.

Despite these disadvantages, capacitive level meters still have their place in many industries. They are known for their high accuracy in certain applications, their ability to measure a wide range of materials, and their non - invasive nature in some cases. If you are considering using a capacitive level meter for your application, it's important to carefully weigh the pros and cons.

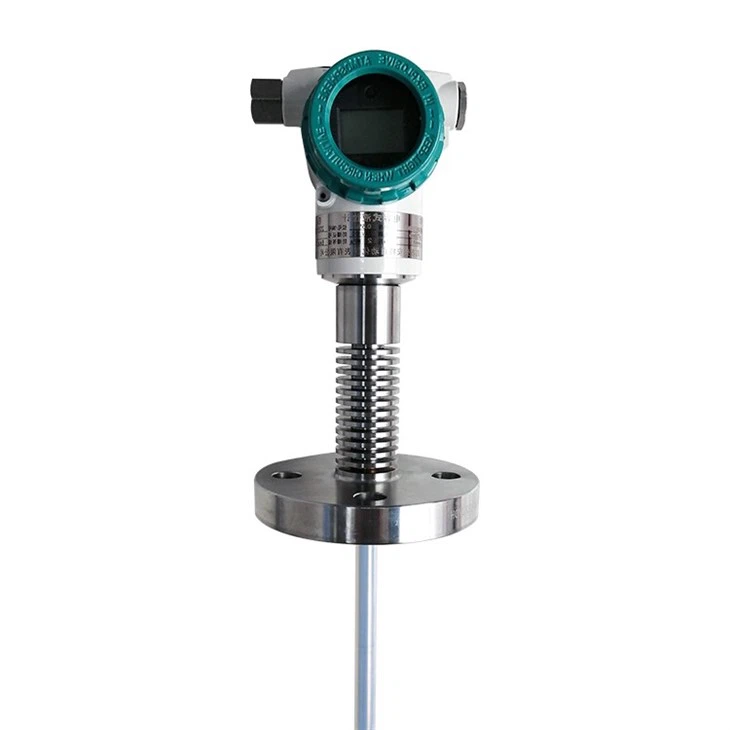

If you are interested in learning more about our Capacitive water level sensor, Capacitive Level Gauge, or Oil - water Interface Meter, we are here to assist you. Our team of experts can help you evaluate whether a capacitive level meter is the right choice for your specific needs. Contact us to start a discussion about your level measurement requirements, and we can work together to find the best solution for your project.
