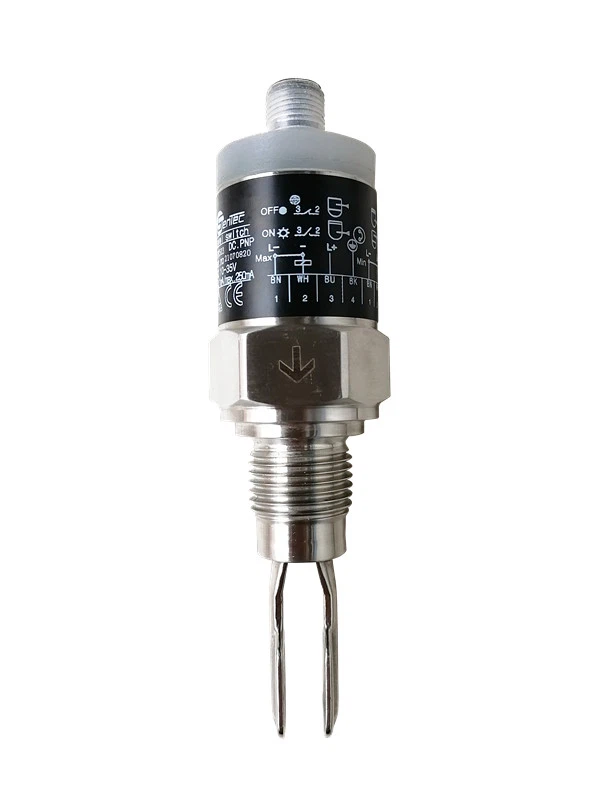

Stainless steel shell G1/2 "threaded small tuning fork level switch

Name: China Stainless steel shell G1/2 "threaded small tuning fork level switch Manufacturers Factory - Aipuxin
Brand: Aipuxin
SKU: 208550656

The Fork level sensor is a liquid level switch based on vibration short tuning fork technology. It is a compact tuning fork switch equipped with a durable stainless steel housing and 316 stainless steel fork body, suitable for various liquid level control applications. Installed on pipelines or tanks through threads, or on food industry equipment through sanitary connectors.

Send Inquiry

Description

Shandong Aipuxin Automation Instrument Co., Ltd. is one of leading manufacturers and suppliers of stainless steel shell g1/2 "threaded small tuning fork level switch in China, also supports customized service with low price. Please rest assured to wholesale cheap stainless steel shell g1/2 "threaded small tuning fork level switch in stock here from our factory.

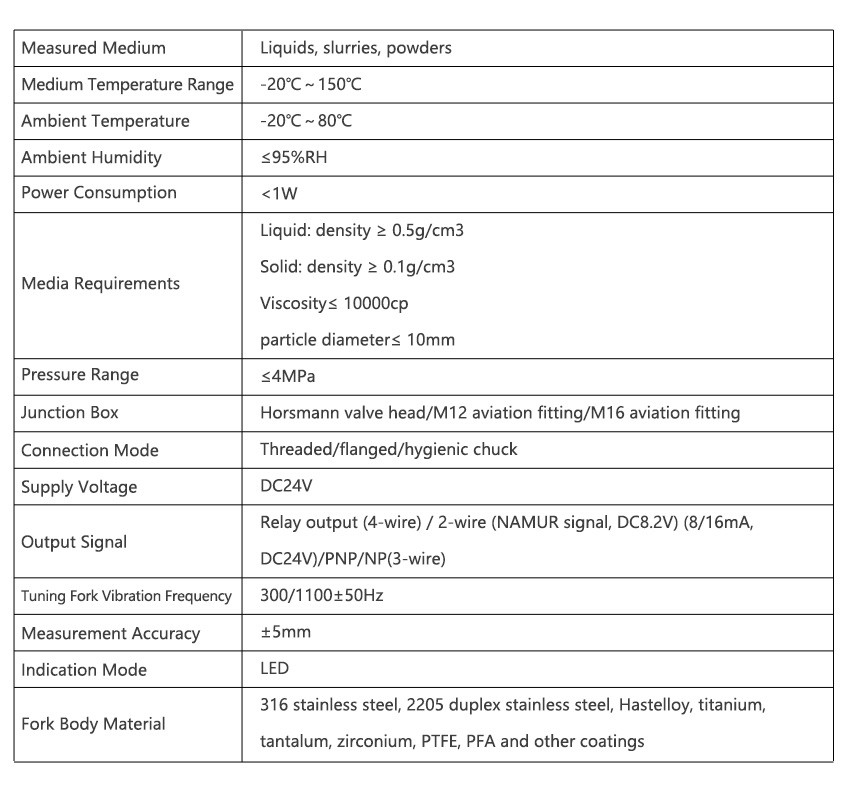

Technical Parameter

Compact-Type-Vibrating-Fork-Level-Switch

Product Introduction:

A Fork level sensor is a type of sensor that can be used to measure physical quantities such as temperature, pressure, and force. Its basic principle is based on the idea that when a tuning fork vibrates, it will produce a sound wave of a specific frequency. By measuring that specific frequency, the tuning fork sensor can accurately detect changes in the physical quantity it is measuring.

The tuning fork sensor consists of a small tuning fork with a piezoelectric material attached to it. When the tuning fork vibrates, the piezoelectric material generates an electrical signal that is proportional to the vibration frequency. This signal is then amplified and processed by electronic circuits to produce a reading that can be displayed on a monitor or recorded in a database.

One of the advantages of using a tuning fork sensor is its high sensitivity and accuracy. Unlike other sensors that may require complex calibration procedures, tuning fork sensors are calibrated during the manufacturing process and can maintain their accuracy over time. Additionally, they operate with low power consumption and can be used in a wide range of applications, from medical devices to aerospace systems.

Another advantage of tuning fork sensors is their small size and low weight. They can easily be integrated into compact devices and can even be used in applications where space is limited, such as in high-pressure environments. Additionally, they are rugged and reliable, making them suitable for use in harsh environments and extreme temperatures.

In conclusion, the basic principle of a Fork level sensor is simple yet effective. By measuring the vibration frequency of a tuning fork with a piezoelectric material attached to it, the sensor can accurately detect changes in physical quantities. With its high sensitivity, accuracy, small size, and low power consumption, tuning fork sensors are a versatile and reliable option for a wide range of applications.

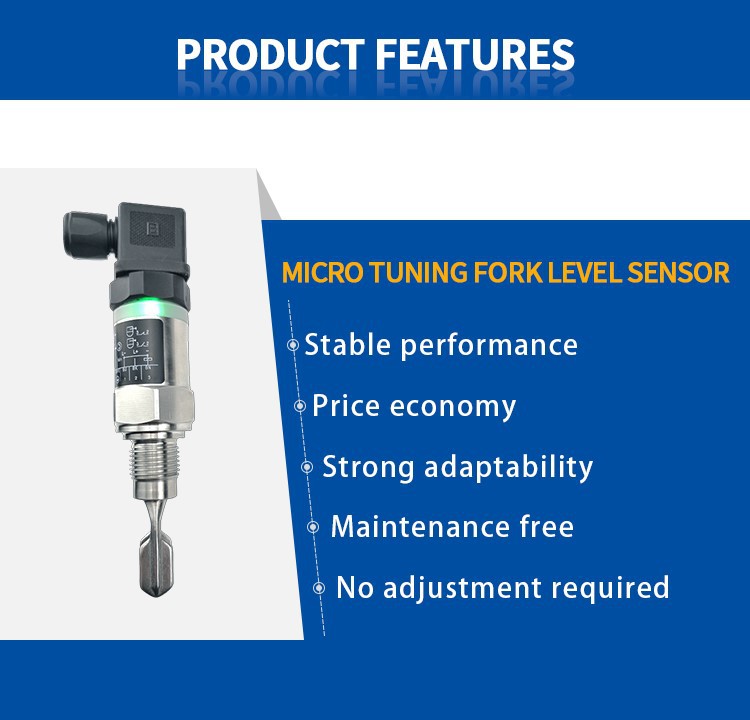

Product Features

features:

1, Strong adaptability: The different electrical parameters and densities of the measured liquid have no impact on the measurement. Severe conditions such as scaling, agitation, turbulence, bubbles, vibration, medium viscosity, high temperature, and high pressure also have no impact on the detection.

2, Maintenance free: As the detection process of the Fork level sensor is completed by electronic circuits and there are no moving parts, maintenance is not required once installed and put into operation.

3, No need for calibration: Due to the fact that the detection of the Fork level sensor is not affected by the electrical parameters and density of the tested medium, no on-site calibration is required for any liquid being measured.

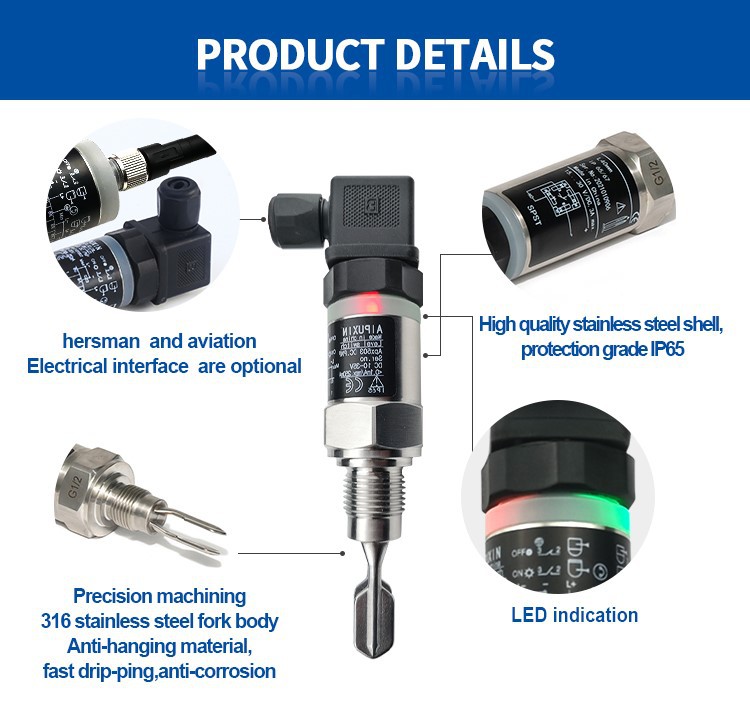

product details
