Stainless steel level sensor

Name: Stainless steel level sensor - China Stainless steel level sensor Manufacturers Factory - Aipuxin
Brand: Aipuxin
SKU: 208549564

It uses piezoelectric components to drive and detect the vibration of the fork body. When the fork body comes into contact with the measured liquid, the resonance frequency of the stainless steel level sensor fork body significantly decreases. The change in vibration frequency is directly reflected in the output signal of the piezoelectric detection device, and the detection circuit distinguishes the change in frequency and outputs a switch signal.

Send Inquiry

Description

Shandong Aipuxin Automation Instrument Co., Ltd. is one of leading manufacturers and suppliers of stainless steel level sensor in China, also supports customized service with low price. Please rest assured to wholesale cheap stainless steel level sensor in stock here from our factory.

Technical Parameter

Compact-Type-Vibrating-Fork-Level-Switch

Product Introduction:

Stainless steel level sensors are one of the most critical components in industrial processes involving liquids, solids or gases. It helps keep materials in tanks, containers or pipes at a certain level to prevent spills, spills or dry runs. The liquid level switch is usually installed at a high or low position and triggers an alarm or control signal when the material reaches a certain level. Among the different types of level switches on the market, vibrating level switches stand out for their reliability, accuracy, versatility and durability, especially when made of stainless steel.
The stainless steel level sensor operates using a tuning fork or piezoelectric crystal, which vibrates at a high frequency when excited by an electronic circuit. When the fork or crystal comes into contact with the material, the frequency of vibration changes, and the circuit detects this change and triggers an output. The frequency response of a vibrating position switch depends on various factors such as material density, viscosity, conductivity and temperature, as well as the geometry, size and resonant frequency of the tuning fork or crystal. By selecting a suitable tuning fork or crystal and calibrating the switch, level detection accuracy and repeatability can be ensured across different materials and measuring ranges.

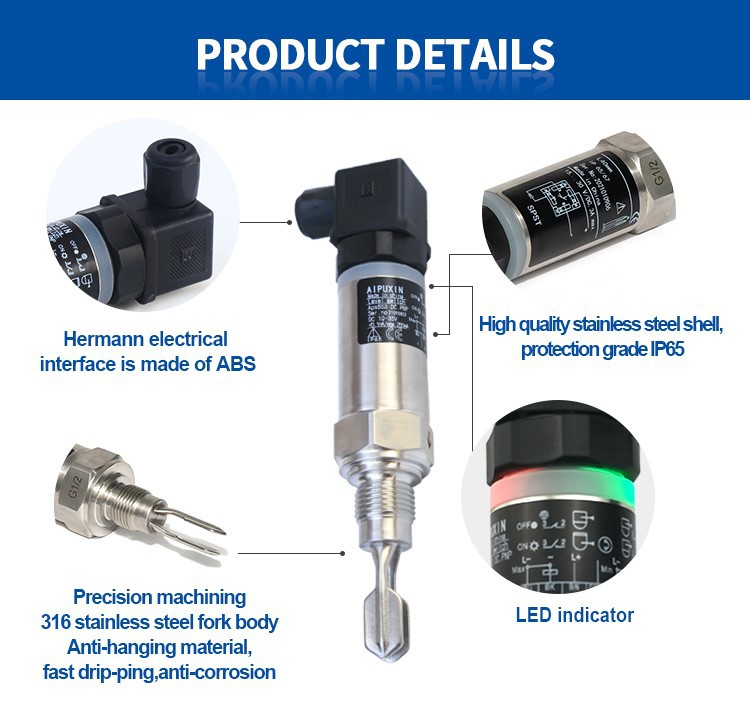

Stainless steel is an ideal material for vibrating level switches as it offers many advantages over other materials such as plastic, brass or aluminum. Stainless steel is corrosion-resistant, hygienic, temperature-resistant, pressure-resistant, and compatible with most industrial fluids and chemicals. It also has a smooth surface finish that prevents material from sticking and building up, and is easy to clean and maintain.
Additionally, stainless steel has an attractive appearance that adds value to your equipment and improves its durability and reliability.
The sensor can be used in a variety of industrial applications, including food and beverage, pharmaceutical, water and wastewater treatment, chemical processing, oil and gas, pulp and paper, mining and power generation. It can detect liquids, solids and particles, as well as interface and foam levels. It can also operate in hazardous environments with explosive gases, dust or liquids by using intrinsically safe circuits or explosion-proof enclosures. Signals can also be transmitted into process control systems such as PLC, DCS or SCADA or integrated into stand-alone units with local display, alarm or relay outputs.
