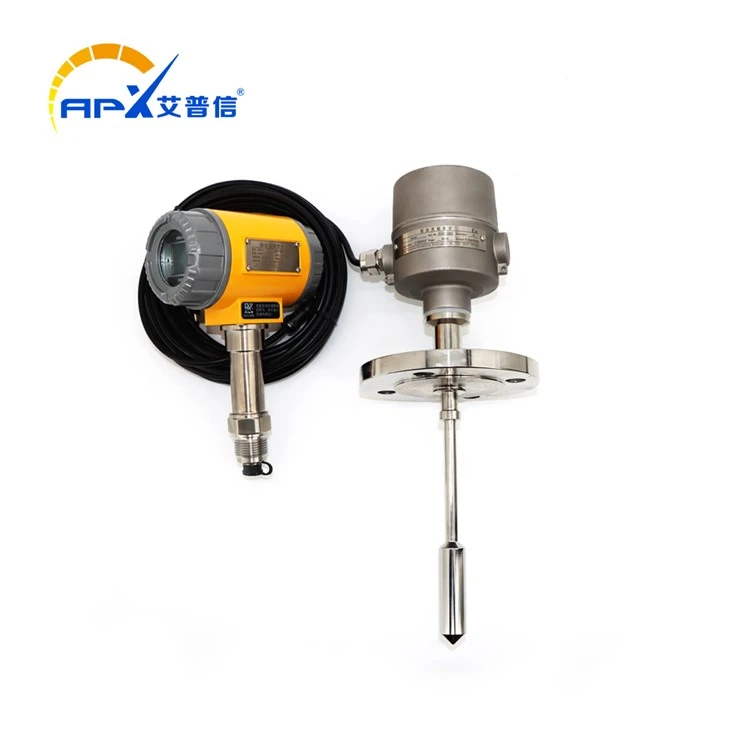

Wide-range In-line Process Viscometer
Wide-range In-line Process Viscometer In-line, real-time fluid viscosity Detection,Can measure both Newtonian and non-Newtonian fluids,Can track viscosity changes in a wide range of 0-1000000CP.Built-in PT100 temperature compensation function, can withstand 350℃ and pressure within 25MPa. The entire sensor is made of 316L stainless steel. The probe has no moving parts, has a solid structure, is easy to clean, requires no maintenance, and can be easily installed in a pipe or tank. Threads, flanges, and sanitary chucks are available for process connections.
Description
Shandong Aipuxin Automation Instrument Co., Ltd. is one of leading manufacturers and suppliers of wide-range in-line process viscometer in China, also supports customized service with low price. Please rest assured to wholesale cheap wide-range in-line process viscometer in stock here from our factory.
All 316 stainless steel, meets industrial explosion-proof requirements
The Wide-range In-line Process Viscometer adopts an all-metal (316L stainless steel) structure, which is strong and wear-resistant. Explosion-proof level: Ex db IIC T6 Gb; Ex tb IIIC T80℃ Db,Comply with industrial explosion protection requirements.Large LCD screen displays viscosity and temperature values,Can be fixed and displayed at the installation location.Adopts split structure equipped with 10m four-core shielded cable.Realizes stable long-distance signal transmission.
The Wide-range In-line Process Viscometer is available with threaded, flanged or chucked process accessories. The standard model uses DN50 PN16 (HG/T20592-2009 RF). The probe length is 230mm. It can be directly inserted into the measurement and is easy to install. Suitable sizes can be customized according to working conditions.
The Wide-range In-line Process Viscometer can be installed directly on straight pipes, elbows, reactor tank tops/bottoms, tank sides, and tank tops. Flexible installation solutions adapt to various production conditions and are suitable for new production lines and equipment retrofit projects. The measurement is not affected by external vibration and shock. The Wide-range In-line Process Viscometer has good repeatability and stable measurement, and is not affected by stirring, bubbles, and flow rate.
Traditional measurement relies on manual offline viscosity testing with a 4# Zahn Cup, which results in test delays and discontinuous data recording.
The Wide-range In-line Process Viscometer is installed on stirred tanks to deliver fast real-time online viscosity monitoring with a 2-second response. It collects viscosity and temperature data, transmits signals to PLC/DCS systems, and automatically generates trend charts.
With continuous measurement data, factories can conduct process analysis, parameter adjustment and production traceability. Deploying the Wide-range In-line Process Viscometer facilitates production line automation and ensures consistent product quality.
Precise real-time viscosity control makes the Wide-range In-line Process Viscometer an essential instrument for intelligent manufacturing of casting slurry.
