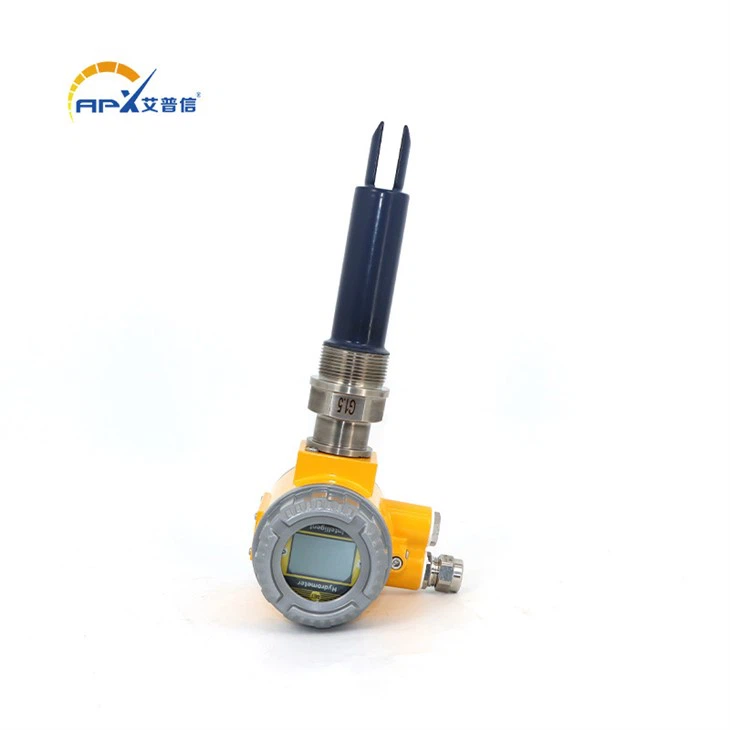

PTFE Densimeter (Interface Meter)
The tuning fork density meter (interface meter) can measure stratification according to different on-site densities. It is installed at the discharge port, and the PLC controls the valve to automatically determine the flow direction of the liquid level.
Description
Shandong Aipuxin Automation Instrument Co., Ltd. is one of leading manufacturers and suppliers of ptfe densimeter (interface meter) in China, also supports customized service with low price. Please rest assured to wholesale cheap ptfe densimeter (interface meter) in stock here from our factory.
The tuning fork density meter (interface meter) can measure stratification according to different on-site densities. It is installed at the discharge port, and the PLC controls the valve to automatically determine the flow direction of the liquid level.
|
|
Name | Explosion Proof Insertion Digital Online 4-20mA RS485 Tuning Fork Slurry Density Sensor |
| Measure range | 0–3g/cm3 (3 /2.5/ 2 /1.5/ 1) (0 – 3000 kg/m3) | |
| Accuracy | ±0.001g /cc (±1 kg/m3) | |
| Operating temperature | -50℃ ~ +200℃ | |
| Max work temperature | 20MPa | |
| Fluid viscosity range | 0 – 20000 cP | |
| Temperature coefficient | 0.1 kg/m3/℃ | |
| Pressure influence | Can be ignored | |
| Built in temperature sensor | PT100 | |
| Wetted part material | Stainless steel, Hastelloy C22, manganese alloy 400, titanium alloy, etc. | |
| Fork body coating | Standard type, PTFE or electrolytic polishing | |
| Power supply | 20–28 VDC,35–45 mA | |
| Analog signal output | 4-20 mA, isolated, non self powered | |
| Output accuracy | ±0.1%FS, ±0.05%FS (20℃) | |
| Output repeatability | ± 0.05% FS @ (-40~ 85℃) | |
| Process connection | 1.5"NPT threaded connections; din 50 PN40 and PN100 flange connections; | |
| Insertion depth | 125mm~2000mm (from flange to the end of the fork) | |
| Display | Density value(kg/cubic meter or g/cc) showed at upper screen, the temperature showed at lower screen. | |
| Accessory | Can choose temperature of 4-20 mA output signal. | |
| Protection | IP65 |
The working principle of the tuning fork densitometer (interface meter) is based on the vibration characteristics of the tuning fork. When the tuning fork is not in contact with materials or liquids, it vibrates at its natural frequency. When the tuning fork comes into contact with materials or liquids, the frequency or amplitude of the vibration changes. These changes are detected by built-in sensors and converted into useful electrical signals through an intelligent signal processing circuit, outputting continuous quantity signals for controlling the density and concentration of materials.
Tuning fork interface meters are widely used in industries such as chemical engineering, pharmaceuticals, and food, especially in occasions that require precise control of material stratification, such as storage tanks and production pipelines.
