Level switch capacitance

Shandong Aipuxin Automation Instrument Co., Ltd. is one of leading manufacturers and suppliers of level switch capacitance in China, also supports customized service with low price. Please rest assured to wholesale cheap level switch capacitance in stock here from our factory.

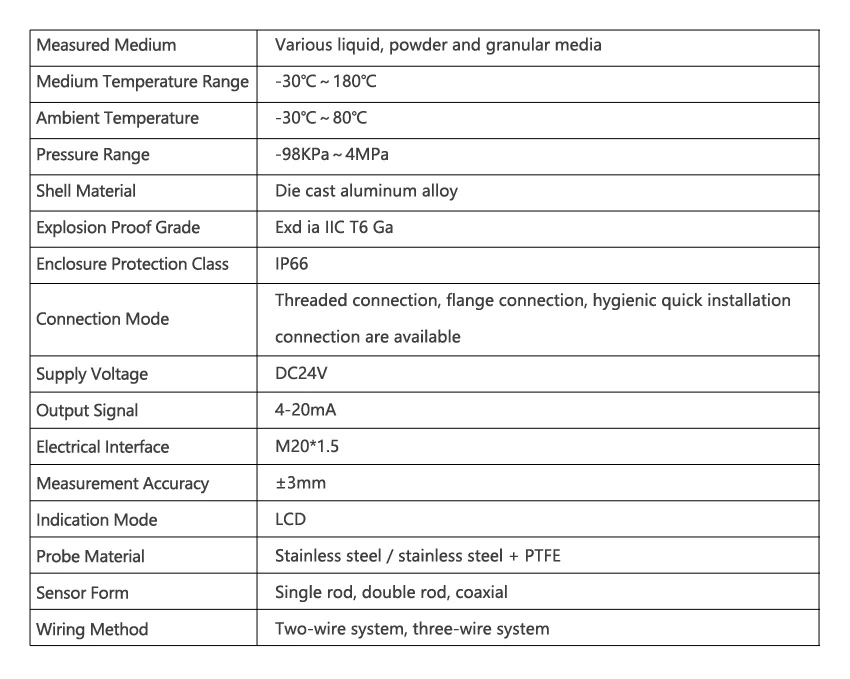

Technical Parameter

Product Introduction:

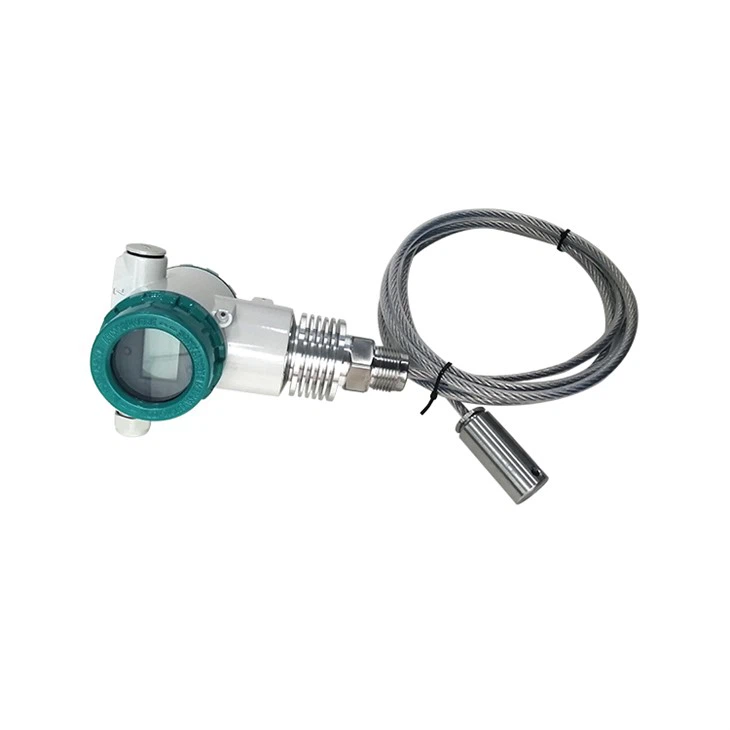

The electronic components embedded in the level switch capacitance analyze the capacitance changes caused by changes in material level and convert them into corresponding output signals. Level measurement has no dead zones over the entire length of the sensor.

1. Directly measure the effective liquid level capacitance value of the sensor. The liquid level switch capacitance can be preset at the factory to achieve plug-and-play.

2. Digital filtering program, adjustable damping time, smooth and smooth measurement.

3. The zero and range parameters can be adjusted independently, which facilitates the correction of the calibrated zero and range parameters to make the measurement more accurate.

4. Corrosion-resistant structure, liquid connection is made of PFA, PTFE, stainless steel 316L.

5. The maximum extension length of the liquid level switch capacitor is 5m, and the maximum extension length of the cable type is 25m.

6. Two-wire (4-20mA) circuit power supply, low power consumption (maximum 20mA).

7. The liquid level switch capacitor has no measurement blind distance and is a liquid level transmitter suitable for various barrels and tanks.

Working principle

Level switch capacitance, also known as radio frequency capacitance level meter, is a liquid level measuring instrument based on the capacitance principle. It determines liquid level by measuring the difference in capacitance between liquids in a container. The following is the working principle of the radio frequency capacitance level meter:

1. Principle of capacitance: Capacitance is a device that stores electric charge. Its basic principle is the ability to store electric charge between two conductors. Capacitance (C) is related to the area of two conductors (A), the distance between the conductors (d) and the dielectric constant (ε). The specific formula is C = ε * A / d.

2. The composition of the radio frequency capacitance level meter: mainly includes a probe (sensor) and a signal processing unit. The probe has one or more measuring electrodes that form a capacitor with the container wall and the liquid inside. The signal processing unit is responsible for generating radio frequency signals and processing and converting the signals received by the probe.

3. Working principle: The radio frequency capacitance level meter applies a high-frequency AC signal to the probe, causing the probe to form a capacitor with the container wall and the internal liquid. When the liquid level changes, the dielectric constant between the liquid and gas also changes, causing the capacitance to change. The signal processing unit detects this change in capacitance and converts it into a liquid-level signal output.

4. Signal processing: The signal processing unit mainly includes an oscillator, detector, and amplifier. The oscillator generates a high-frequency AC signal that is transmitted into the liquid through the probe. The detector is used to detect the signal received by the probe and convert it into a DC signal. The amplifier amplifies the DC signal into a usable range for subsequent processing and display.

5. Application: Radio frequency capacitance level meter is widely used in liquid level measurement in petroleum, chemical industry, metallurgy, electric power, food, and other industries. It can measure various conductive and non-conductive liquids with high measurement accuracy and stability.

Product Features

4-20mA/RS-485 multiple signal outputs to facilitate different system configurations. Level switch capacitance is suitable for measuring the liquid level of high temperature and high pressure vessels. The measured value is not affected by the temperature, specific gravity, shape and pressure of the liquid being measured. It also provides comprehensive overcurrent, overvoltage and power polarity protection.

Anti-adhesion function: Advanced anti-adhesion circuit design can eliminate material adhesion and avoid false error signals.

Super adaptability: It can detect solid and liquid materials in high temperature, high pressure, dusty, and high viscosity environments, and is not affected by the dielectric constant of the measured medium.

One-key calibration: Using digital circuit design, users can complete the calibration at one time in the short position state, which is easy to operate.

The liquid level switch capacitor is easy to install and debug: fully sealed integrated installation structure, no mechanical moving parts, high reliability, and basically maintenance-free. Once installed, no need for multiple commissioning.

Product Details

Product Application

Level switch capacitance performs well in applications in various industries, providing users with accurate and reliable liquid level measurement solutions. In addition to the above fields, liquid level switch capacitors are also used in the following scenarios:

1. Mining: detecting the liquid level of mineral raw materials such as slurry and tailings;
2. Food industry: detecting the liquid level of food raw materials such as beverages, juices, syrups, etc.;
3. Brewing industry: detecting the liquid level of beer, liquor, wine and other alcoholic beverages;
4. Cement industry: detecting the liquid level of cement raw materials;
5. Textile industry: detecting the liquid level of dyes, slurries and other textile raw materials;
6. Battery manufacturing: detecting the liquid level of electrolyte, battery fluid and other liquids.

Warranty period and maintenance: The liquid level switch capacitor enjoys a lifetime maintenance-free guarantee after purchase, so users can use it with confidence. During the warranty period, if any quality problems occur, we will provide free repair or replacement services. At the same time, we also provide users with comprehensive technical support and after-sales service to ensure that users receive satisfactory solutions during use.
