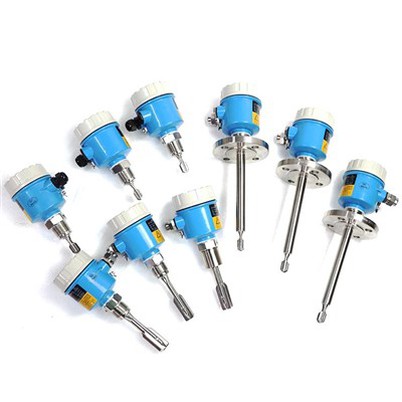

Vibrating fork sensor

Shandong Aipuxin Automation Instrument Co., Ltd. is one of leading manufacturers and suppliers of vibrating fork sensor in China, also supports customized service with low price. Please rest assured to wholesale cheap vibrating fork sensor in stock here from our factory.



Technical Parameter



Product Introduction:

Vibrating fork sensor, as the name suggests, is a tuning fork material level switch that can be used at higher temperatures. It is developed on the basis of a normal temperature tuning fork level switch to meet the measurement requirements under high temperature conditions.



The most significant feature of high-temperature tuning fork switches. The high-temperature tuning fork switch is an innovative high-temperature resistant design based on the structure of the normal temperature tuning fork material level switch. A high-temperature extension tube is added between the meter head and the process connection, so that the working temperature of the meter head can be reduced to the temperature range where electronic devices can work normally. At the same time, the piezoelectric components that drive and detect probe vibration are all made of high-temperature resistant piezoelectric ceramics, high-temperature resistant electrodes and wires, and high-temperature resistant packaging materials, These high-temperature resistant designs ensure that the product can work reliably in process temperatures up to 400 ℃.



The high-temperature tuning fork switch has the following characteristics:

1. High temperature resistant design, with a process temperature of up to 400 ℃, leading the industry.

2. Reasonable fork area design, with precise tuning of the fork, can measure density as low as 0.008g/cm ³.

3. Specially designed for measuring powder and fine particle materials, it can effectively prevent material hanging.

4. Rich self-diagnosis functions can accurately locate fault information.

5. The high-temperature tuning fork switch is easy to install and maintenance free.

6. Passed gas explosion-proof and gas intrinsic safety explosion-proof certification.

7. Use material 316 with strong corrosion resistance.



Vibrating fork sensores are mainly used for measuring small particles and powder materials in high-temperature environments. Especially common in the following operating conditions:

1. Measurement of material level for polyester chip PET.

Due to the temperature of PET particles in the drying tower reaching 160 ℃, it is difficult for the normal temperature tuning fork level switch to work at such high temperatures. However, the process temperature of the Fork-11 high-temperature tuning fork switch can reach up to 250 ℃ (the process temperature of the Fork-11 ultra-high temperature tuning fork level switch can reach 400 ℃), fully meeting the on-site measurement requirements under high-temperature working conditions.

2. Measurement of material level for zirconium tetrachloride.

The temperature of zirconium tetrachloride reaches 200 ℃, so the high-temperature tuning fork switch with a process temperature of up to 250 ℃ is an ideal choice for safe and reliable material level measurement.

3. Measurement of material levels such as ultra-low density particles and powders in other processes with a temperature range of 150 ℃ to ¥ 250 ℃.



Product Features





product details

Product Application



Installation case

The Vibrating fork sensor is widely used in the petroleum, chemical, light industry, food, water treatment, building materials, and environmental protection industries, providing comprehensive solutions for various industries.



About Packaging



certificate

12 month warranty period; Lifetime maintenance free
