Radar type level indicator

Name: China Radar type level indicator Manufacturers Factory - Cheap Radar type level indicator - Aipuxin
Brand: Aipuxin
SKU: 208845429

Send Inquiry

Description

Shandong Aipuxin Automation Instrument Co., Ltd. is one of leading manufacturers and suppliers of radar type level indicator in China, also supports customized service with low price. Please rest assured to wholesale cheap radar type level indicator in stock here from our factory.

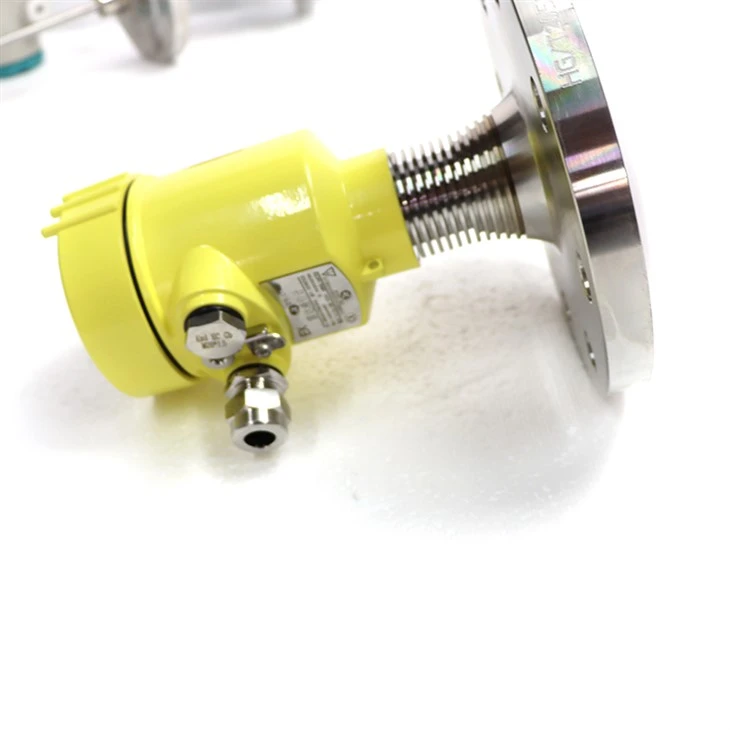

Radar type level indicator, high temperature resistant, strong dust and high moisture powder warehouse radar level gauge, developed using the principle of frequency modulated continuous wave radar technology, has excellent adaptability and anti-interference ability. The high-temperature resistant radar level meter adopts an aluminum alloy shell, with a novel design and lightweight equipment. It has the function of rotating and adjusting the angle, and has the function of blowing and automatic control. It can be set to exceed the temperature limit for blowing to cool down, and can be set to a fixed time and quantitative blowing control to remove dust from the skyline. It can also remotely and wirelessly control the start and stop of the blowing.

The level measurement is an important part of the current level control. The level measurement problem of the limestone powder silo is a problem. Due to the large dust in the powder process, the original level meter can not meet the on-site use. Not only the measurement needs to be connected, but also the precision requirements are very high. When measuring the level of limestone powder, the most commonly used measuring instruments are high-temperature resistant radar level meters. The radar level meter is a continuous and non-contact level measuring instrument, which has the advantage of high measurement accuracy and can withstand high temperatures. For the level measurement of powder silo and ash silo, the high-temperature resistant radar level gauge has a maintenance free feature, greatly increasing work efficiency, and the radar level gauge can add a blowing function.

Technical Parameter

Working principle

Radar type level indicator, a two wire instrument that outputs 4-20mA analog signal and overlays it with HART communication, or an RS-485, MODBUS four wire instrument, measuring a maximum distance of up to 120 meters. The radar antenna is further optimized and processed according to various working conditions. The use of new and fast microprocessors enables more efficient signal analysis, processing, and reaction, enabling the Radar type level indicator to work effectively in complex measurement environments such as corrosive media, reaction vessels, dusty silos, non-conductive media, and high temperatures.
